AIM MXm Dash Logger


The Compact Entry-level Dash Logger

SKU: X87MXM0000 Category: Tag:

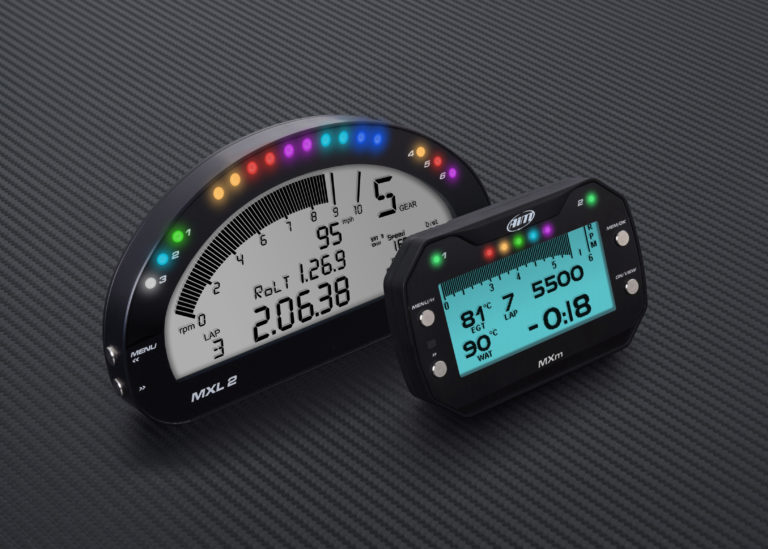

The AiM MXm Dash Logger is a compact-sized, fully featured dash logger for racers needing ECU or engine sensor data while having the option of adding multiple HD cameras. From Spec Miata to Porsche GT3, the new AiM MXm is ready to monitor and record your vehicle and driver health and performance.

The AiM MXm has been designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the internal GPS receiver, analog/digital inputs and predefined math channels. The spectrum of data acquired can also be incremented adding expansion modules.

Two configurable RGB alarm LEDs.  You choose the conditions, you choose the colors.  Select a solid alarm or flashing one – and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

AiM MXm Dash Logger Features

ECU Connection:

MXm acquires data from the ECU of your vehicle: the list of available ECU drivers (CAN, RS232 or K-line), constantly updated and upgraded, includes > 1,000 different ECUs, either Stock and Racing.

Analog/digital inputs:

MXm features digital Speed/RPM and 4 analog inputs, recorded up to 1000 times per second each. You can connect and monitor temperature, pressure, suspension sensors, together with your custom sensors.

MXm also Features 3 Digital Inputs:

  • 1 Speed signal
  • Coil RPM input
  • Lap signal

Internal Accelerometer and Gyro:

The internal three-axial accelerometer and the gyroscope provide MXm all the information needed to quantify the dynamic characteristics of your vehicle.

Real Time Math Channels:

MXm can be configured to display those values (i.e. brake bias, calculated gear) in real time

Customizable Data Layout on your Home Page:

You can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.

Easy Data Recall:

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures

Technical Information

Part Number: X87MXM0000
Manufacturer: AiM

AiM MXm Dash Technical Specifications:

  • GPS included: Yes
  • Display resolution: 268×128 pixels
  • Backlight: 7 configurable RGB colors
  • Ambient Light sensor: Included
  • Shift Lights: 5 RGB LEDs
  • Alarm LEDs: 2 configurable
  • CAN connections: 2
  • ECU connections: CAN, RS232 or K-Line
  • ECU compatibility: + 1,000 industry leading ECUs
  • GPS: Integrated
  • CAN Expansion:  Channel Expansions, Thermocouple Expansions, Lambda Controllers, SmartyCam HD
  • Analog inputs: 4 fully configurable, 1,000 Hz each
  • Digital inputs: 1 speed input, lap signal, coil RPM input
  • Accelerometer: Internal Three-axial ± 5G + Three-axial Gyroscope
  • Internal memory: 4GB
  • BodyMaterial : Glass fiber reinforced Nylon
  • Pushbuttons: Metallic
  • Connector:  37 pin Motorsport connector
  • Dimensions: 137 x 88 x 30 mm
  • Weight: 390g
  • Waterproof: IP65

Need Sensors?

AiM 0-150 psi pressure sensor -used for oil and water pressure

AiM 0-2000 psi pressure sensor – used for brake pressure

AiM LCU-One Lambda controller – used for sensing Air/Fuel ratio

AiM Steering angle sensor

AiM Throttle Position sensor

Remote TPMS – used for tire pressure and temperature monitoring

AiM Infrared tire temperature sensor
