AIM CAN Channel Expansion

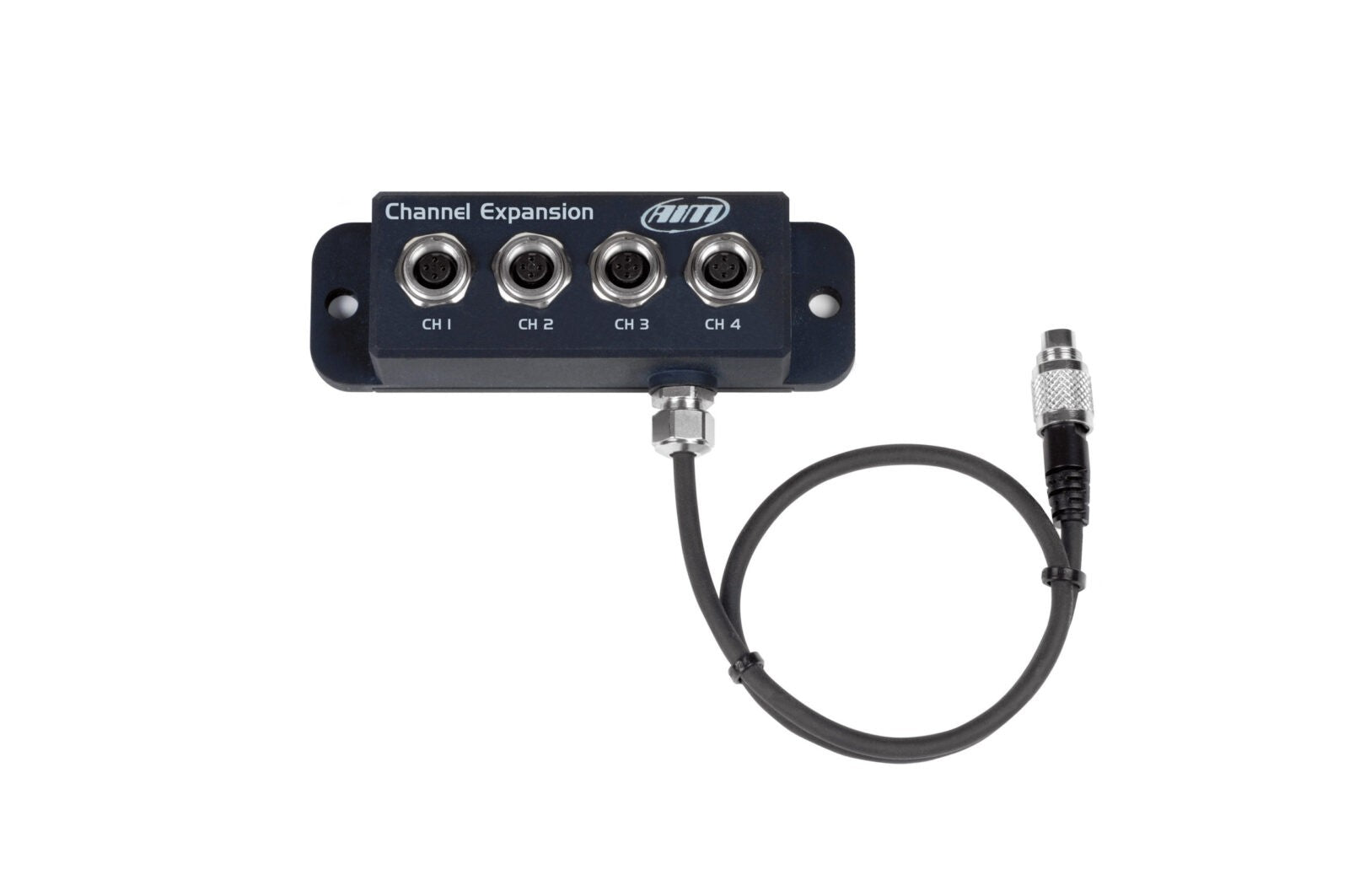

The AIM CAN Channel Expansion Hub allows you to connect up to four analog sensors (or a combination of analog sensors and up to 2 digital sensors) to the CAN data port on your AiM data logger. Combined with the AiM 4-Port CAN Data Hub , you can add an unlimited array of sensors without occupying any of the base channels on your data logger. Each of these channels is also available for display on your AiM dash or on your SmartyCam video.

For example, you could use four linear travel potentiometers connected to one AIM CAN Channel Expansion to measure suspension travel on all four wheels. Connect the Channel Expansion Hub to a 4-Port CAN Data Hub and you can still add GPS, a Lambda controller, and four EGT thermocouples connected through a TC Hub. All of this information is transmitted through the CAN system, leaving the base channels free to measure other parameters such as oil pressure, temperatures, throttle position, steering angle, and brake position. You can turn a very affordable dash into an incredibly powerful data logger!

Each of the 4 ports accepts a 4-pin "712" (screw-in) connector. Sensors with "719" (push-in) connectors will require a 719 to 712 Adapter Cable , sold separately. The output is a 150cm (5.9") cable with a standard 5-pin "712" CAN male connector.

Works with any CAN-enabled AiM data logger, including MXL (Strada/Pista/Pro/Pro05), MXL2, MXG/MXS, MXS Strada, EVO3, EVO4, EVO4S, and EVO5.

Technical Information

User Guide: Channel Expansion
