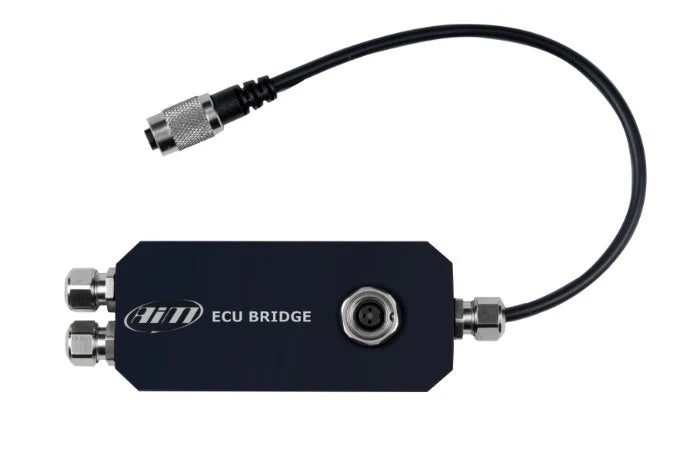

AiM ECU Bridge Module - OBDII

AiM ECU Bridge Module - OBDII

SKU: AIMX90BGCK12MA
$250.00
$250.00
Subtotal: $250.00
AiM ECU Bridge Module - OBDII

AiM ECU Bridge Module - OBDII

$250.00
AiM ECU Bridge Module - OBDII

AiM ECU Bridge Module - OBDII

$250.00
Description
Description
x

Connecting to the ECU allows the AiM unit access to data collected by your ECU (RPM, road speed, coolant temperature, and throttle position are typical; many ECUs offer much more information).

Works with the following AiM displays with the male 5-pin CAN connector:

  • AiM MXG
  • AiM MXS
  • AiM MSM
  • AiM MXL & MXL Pro
  • G-Dash Display
  • Formula Car Wheel Display

SmartyCam requires the AiM 7-pin to 5-pin CAN Cable (Part No. MC-542, included with the SmartyCam).

The ECU Bridge also features a special port for a USB cable (included) for easy connection to your computer for setup. ECU Bridge is available with OBDII connection, for direct installation on aftermarket ECUs.

ECU Bridge and RPM Bridge are needed whenever engine data are to be visualized on a display or a SmartyCam video, if no recording is required. ECU Bridge is used when the ECU transmits data via OBDII.

AiM has developed hundreds of different protocols to make compatibility with virtually any ECU possible, stock or aftermarket. ECU Bridge has to be properly configured with Race Studio 2 software to communicate with the different visors/cameras on one side and ECUs on the other side.

Wiring Protocol and Details

  • CAN protocol for external modules (visors or SmartyCam HD)
  • USB port for PC communication
  • External power 8/18 V
