AIM PDM32
SKU:
AIMPDM32-10
- $3,299.00
- $3,299.00
- Unit price
- per
Subtotal:
$3,299.00
Couldn't load pickup availability
Description

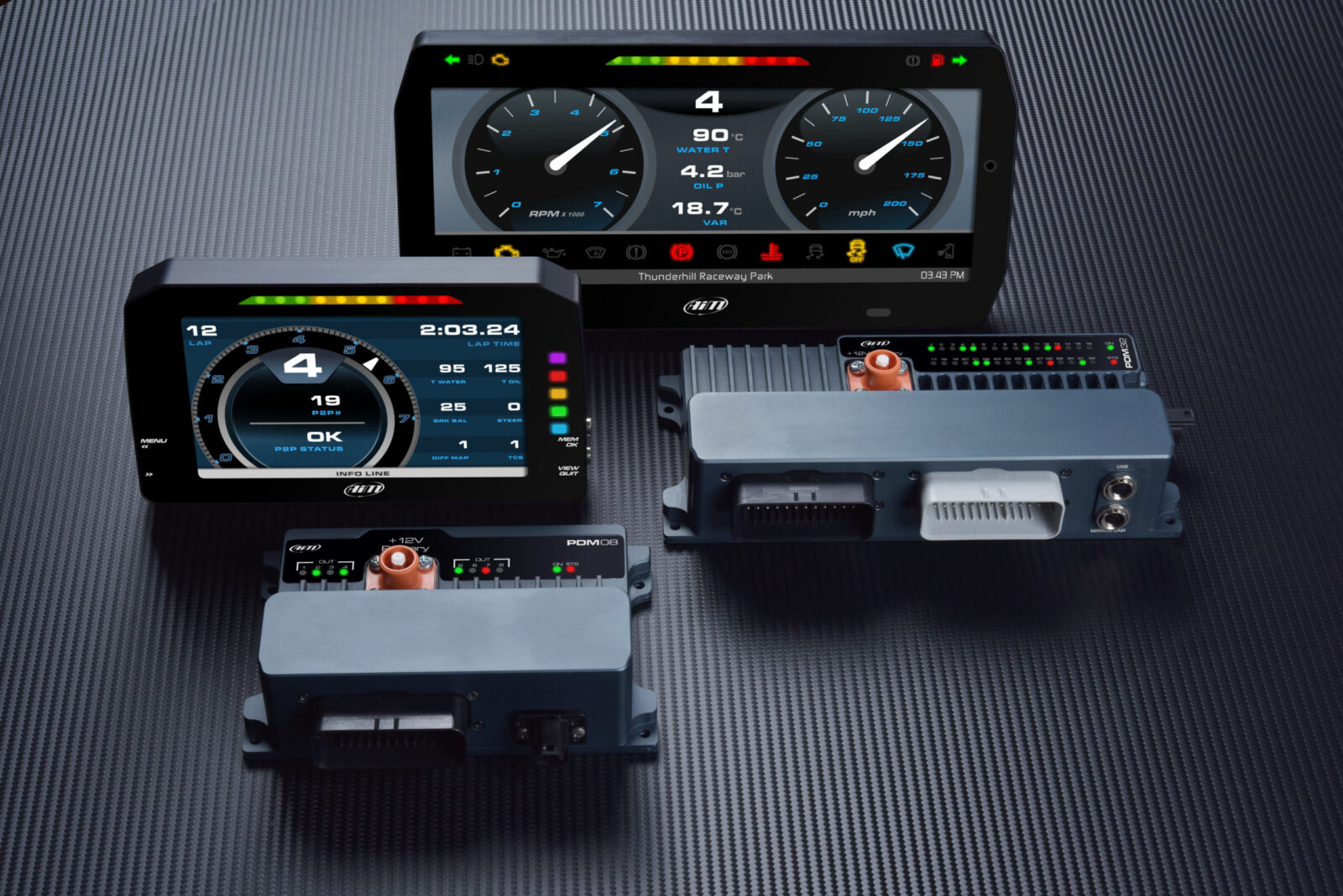

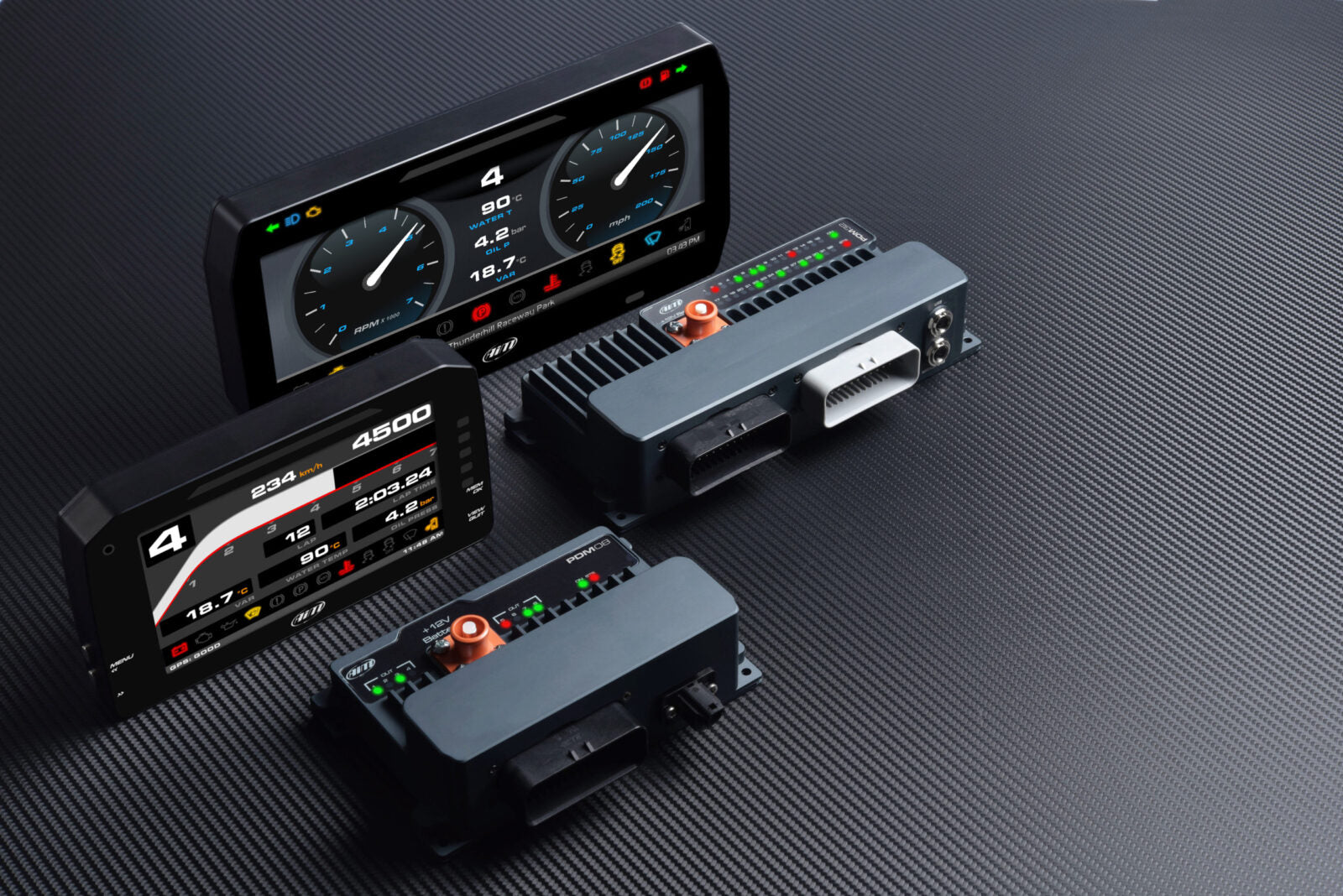

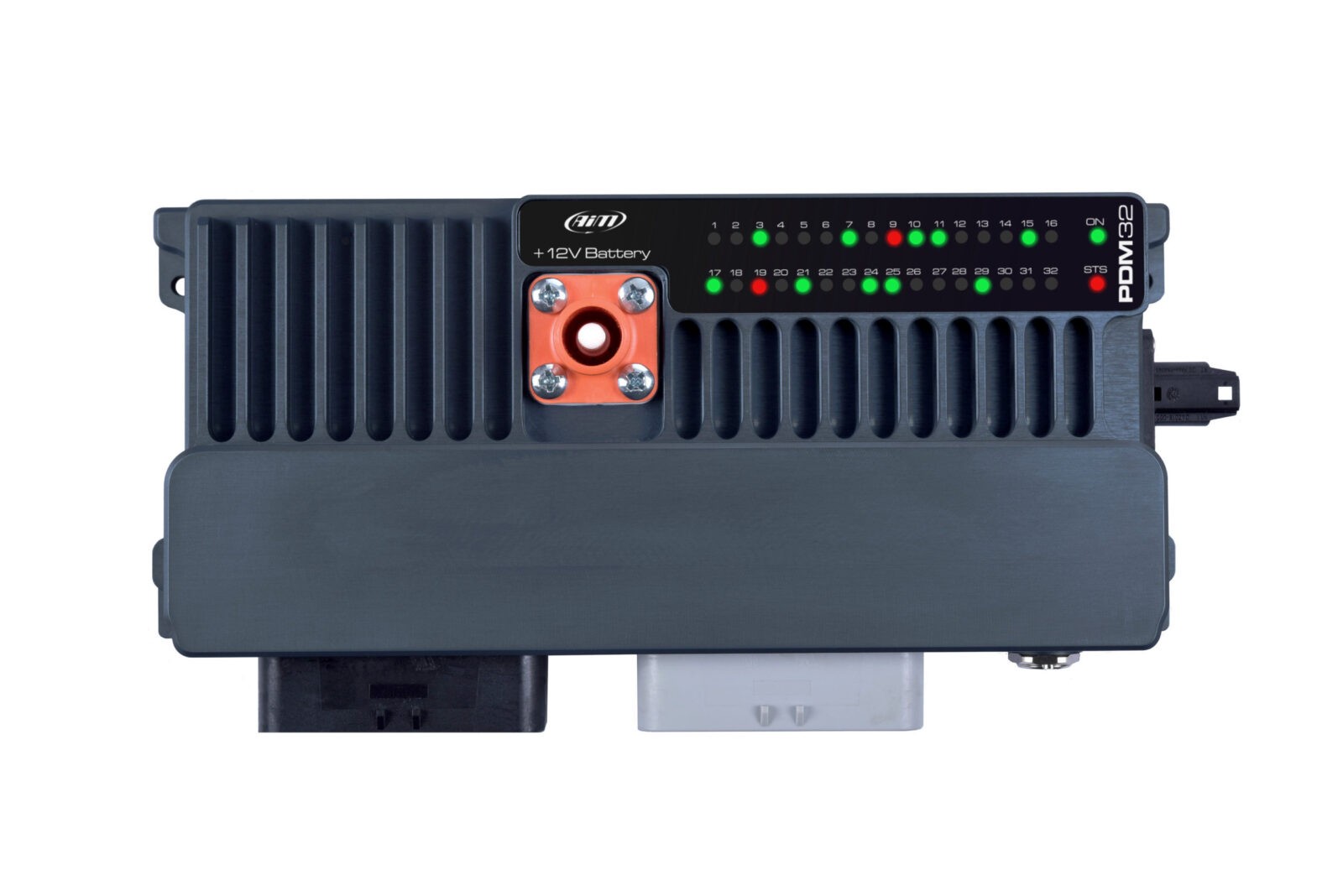

xThe AiM PDM32, housed in an anodized billet aluminum case, is a 32 channel Power Distribution Module designed to handle the rigors of motorsport and includes a complete professional data logger and internal dash controller.
An AiM PDM at the center of vehicle electronics will greatly simplify your wiring harness and electronics installation while providing much more control.

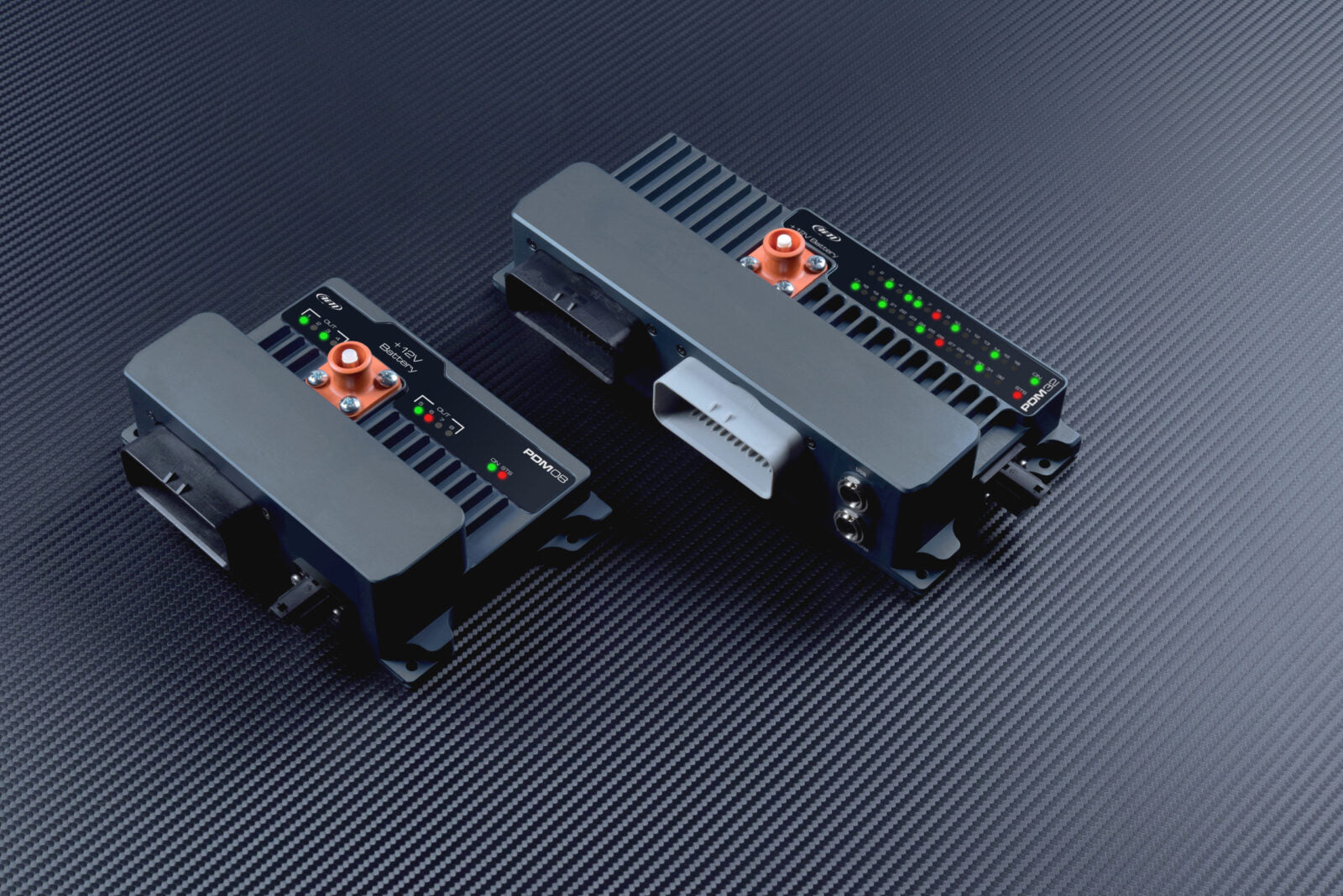

AiM PDM32 (and PDM08) offer some interesting features, like:
- ECU connection, for getting data from your ECU
- Datalogging, for avoiding adding another logger to your car
- GPS Module, for having automatic lap times and track positions
- Dash controller, for easily managing a 6” or 10” dash
- 9 axis EMU platform

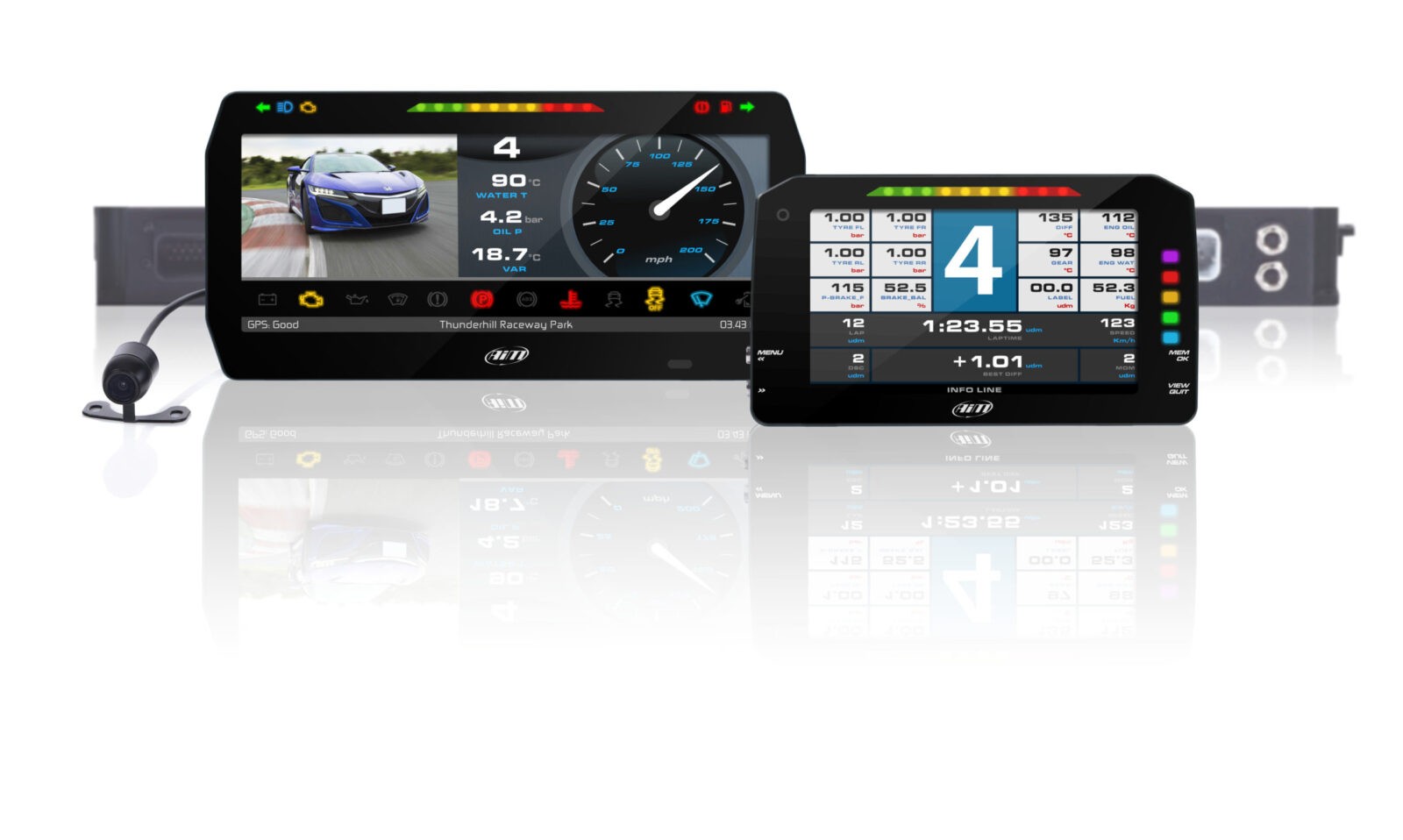

- Mirror camera, for easily getting a back view while you drive your car in reverse in the paddock
Technical Information
| Part Number: | AIMPDM32 |
| Manufacturer: | AiM |
The AiM PDM32 offers four different Power Outputs Levels:
| High Power: | Continuous Current 35A | 4 |
| Medium Power: | Continuous Current 20A | 12 |
| Low Power: | Continuous Current 10A | 12 |
| Half Bridge: | 4 | |
| Total Continuous Max Current: | 120A |
Data Management
The PDMs receive, use and record data from:
- ECU: more than 1,000 protocols available
- Digital/Analog inputs
- Internal 9 axis EMU
- GPS: position and Lap Time
- Expansions
- Pushbuttons, from RIO02 Module or from any commercial CAN keypad, thanks to the simple configurability of the CAN protocols
- All the currents and status of all the power outputs
- Other user defined math channels

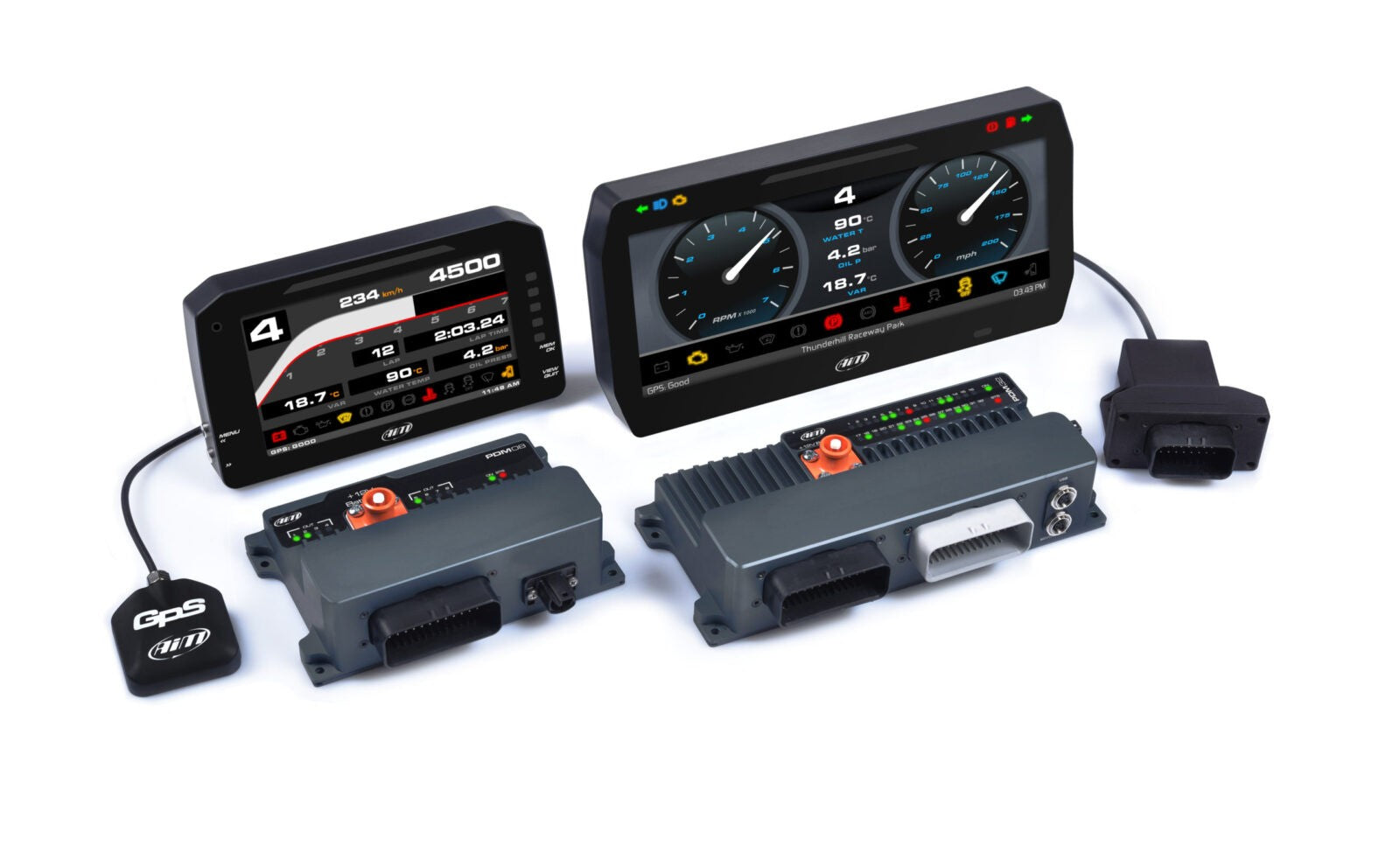

The PDM Kit includes:
- New INTEGRATED Power Distribution Module
- + 4 gigabytes Datalogger
- + Dash controller
- Dash 6” or 10”
- GPS Module for automatic Lap Time and track position
Click Here for the AiM PDM Brochure:
