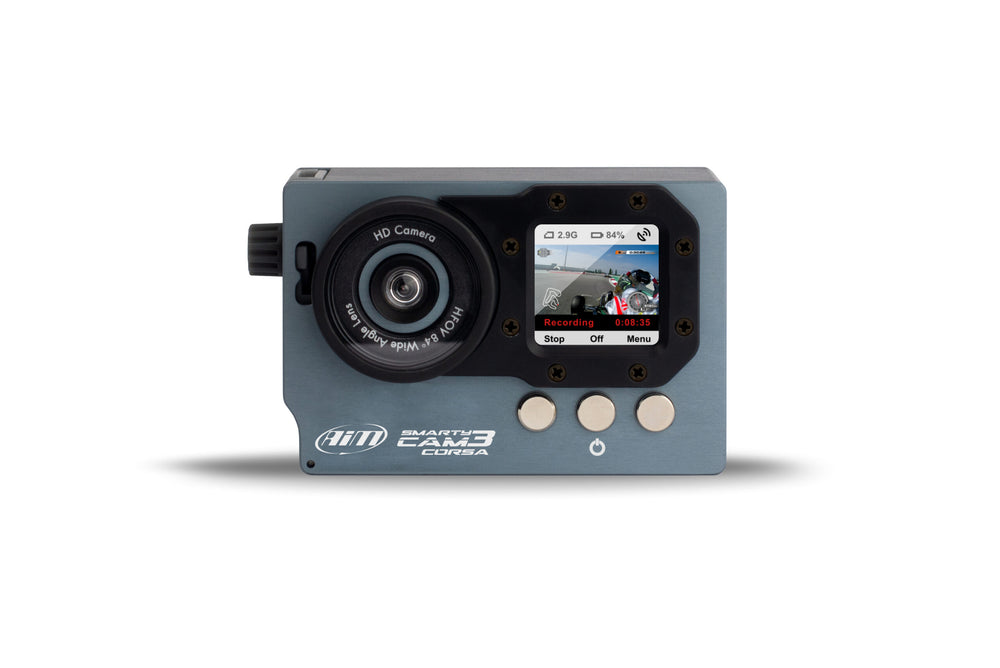

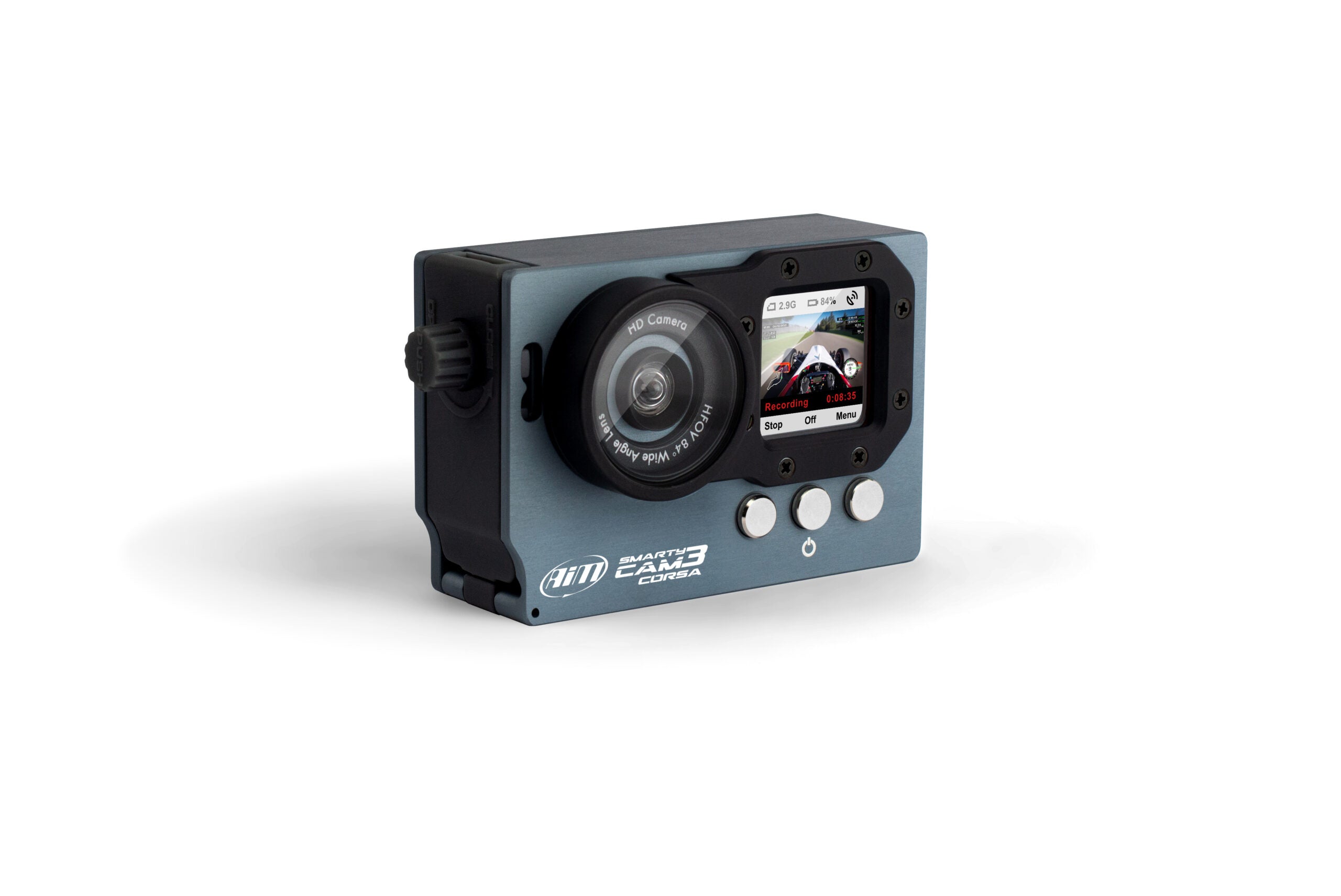

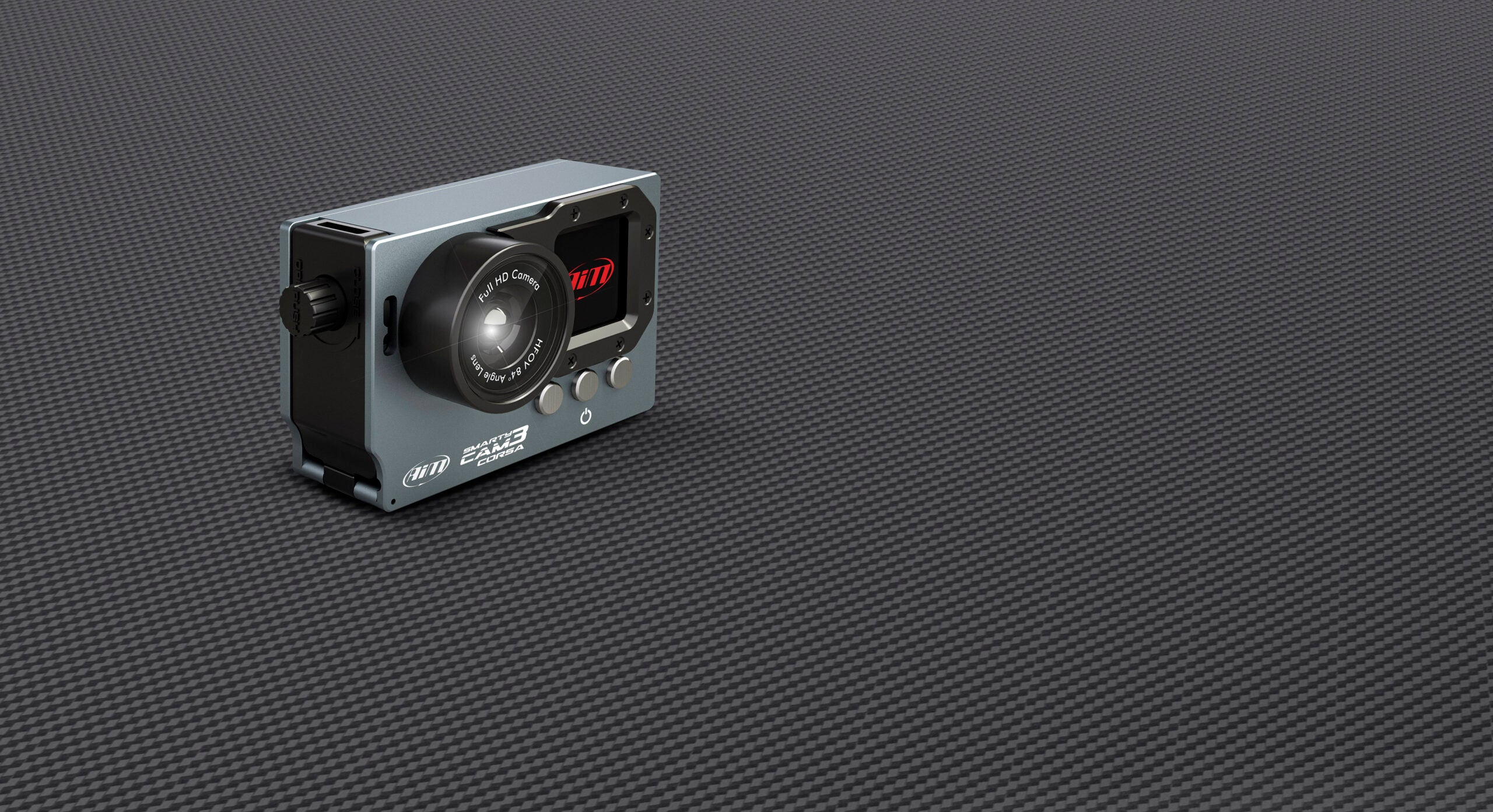

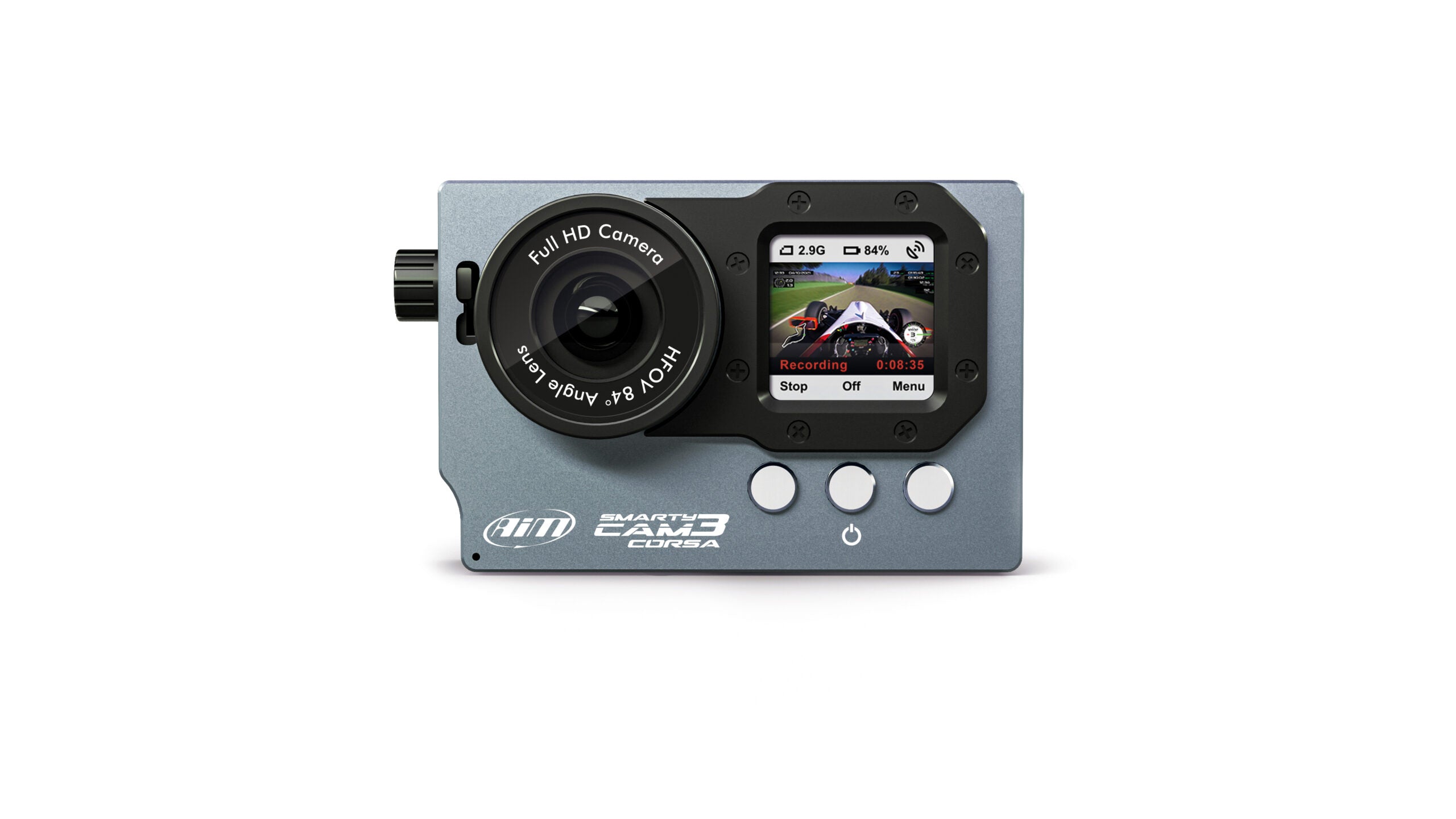

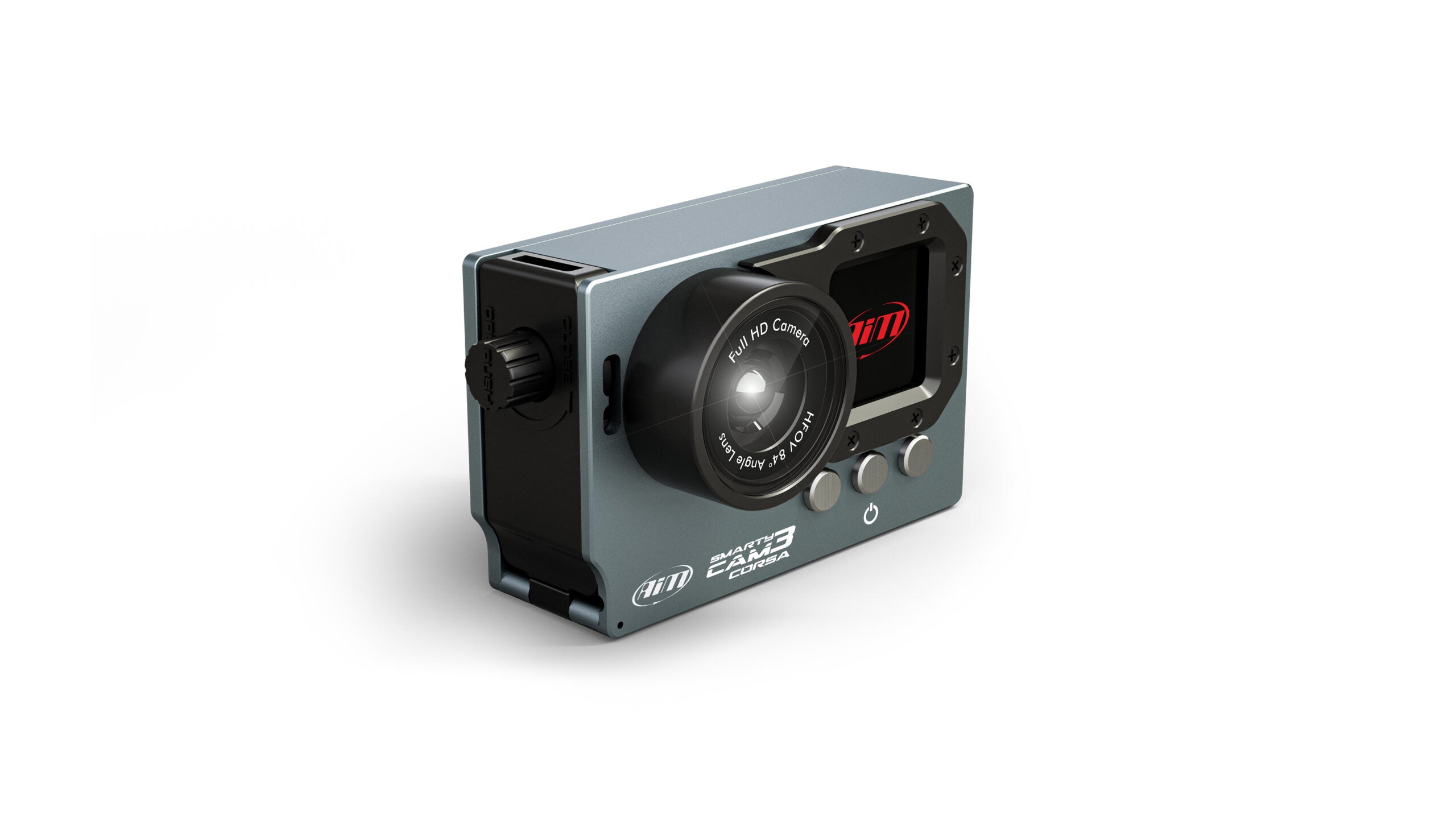

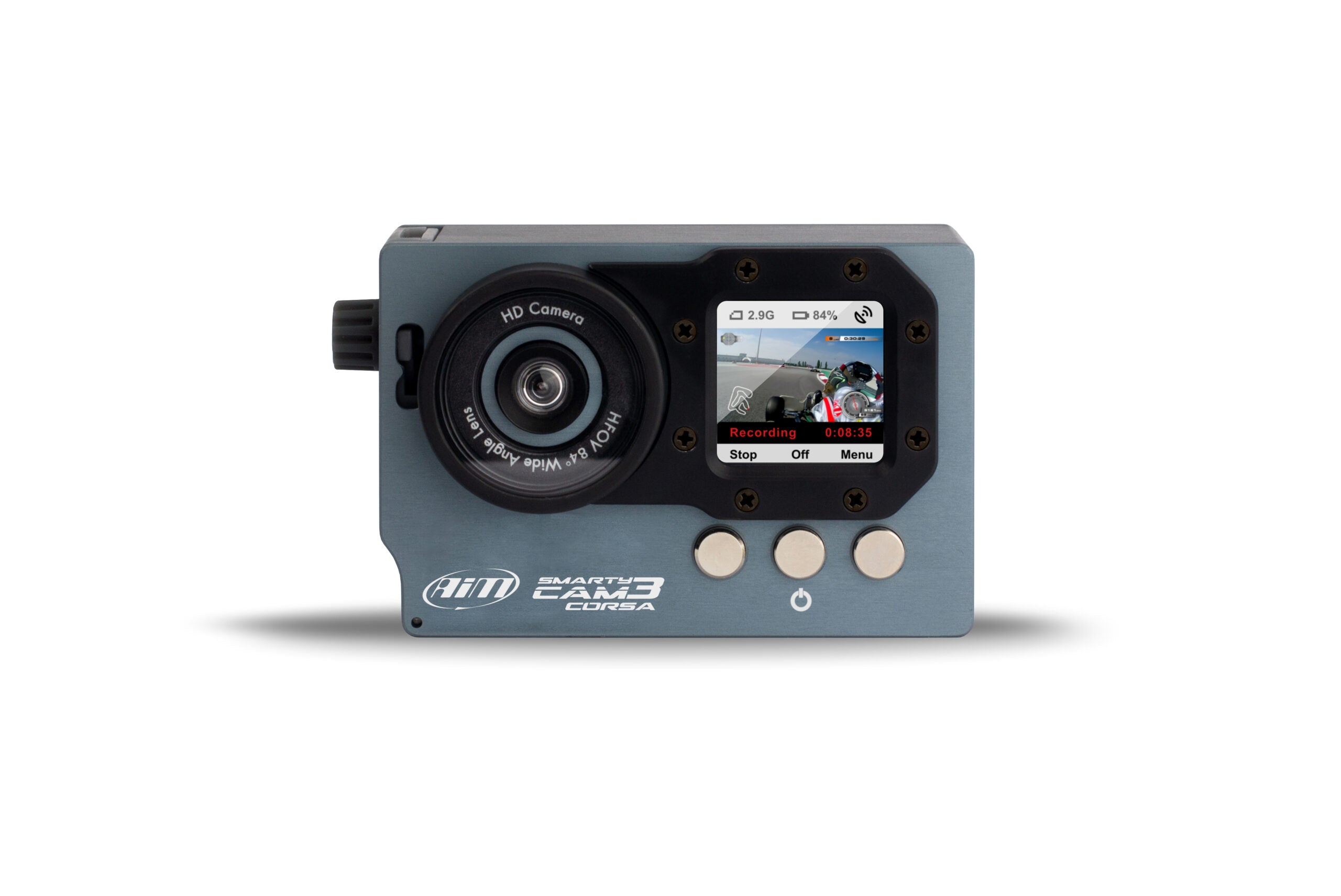

AiM SmartyCam 3 Corsa

The new AiM SmartyCam 3 Corsa in both 67° and 84° upgrades the AiM SmartyCam HD 2.1 with 1920×1080 FHD Video recording at 60 frames per second and 2 TB SD Card capacity.

Highlights:

USB-C connection

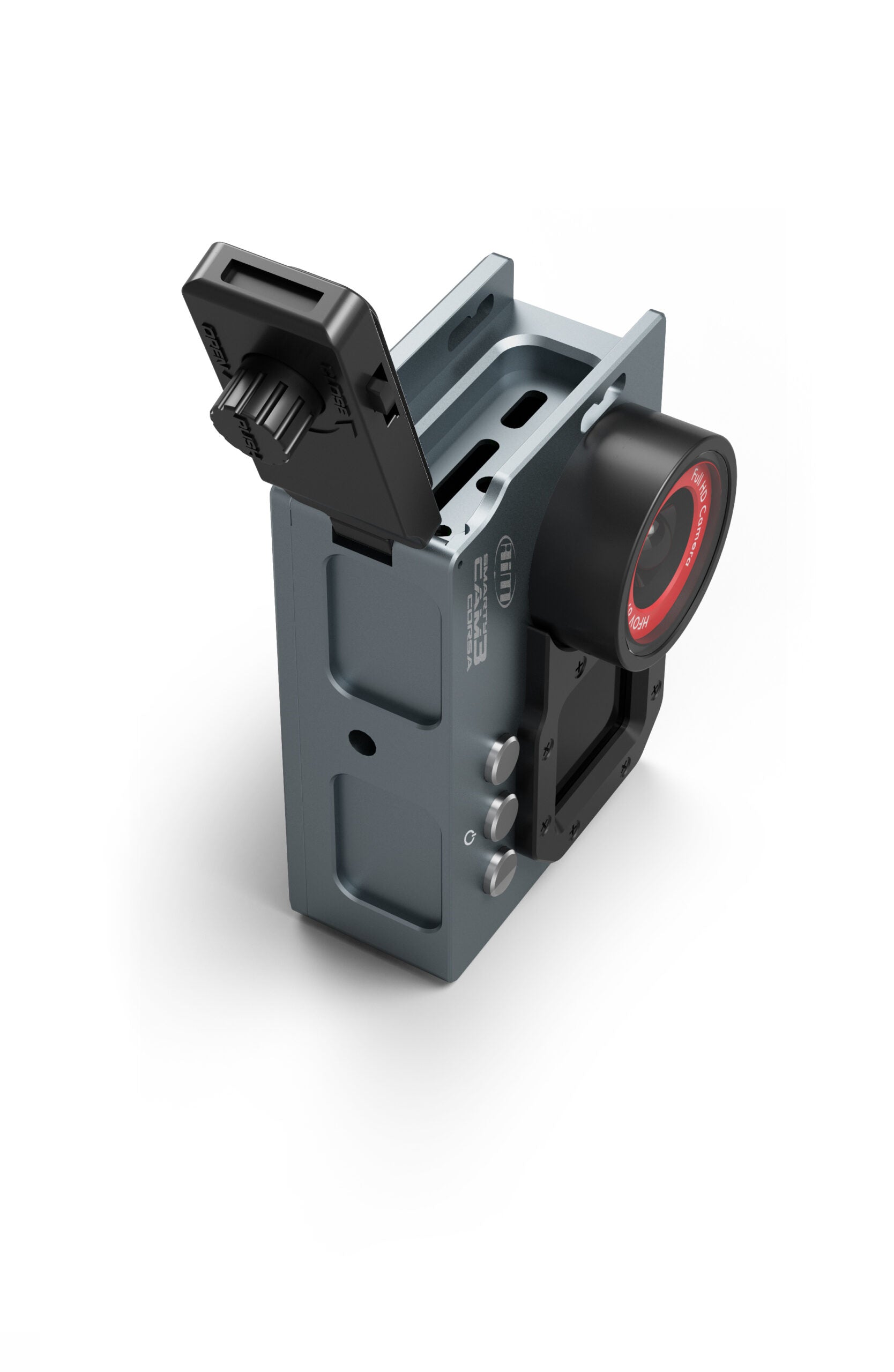

USB-C port, placed in the side flap, makes any transfer from PC to SmartyCam 3 Corsa and vice-versa easy and fast. Using the proper cable, USB-C port makes it possible to send configuration, updating, tracks and settings to SmartyCam 3 Corsa and to download data and video after every session.

Full internal datalogger

All data received from the CAN bus and from the internal sensors are recorded in .mp4 files produced at the end of your test, your SD (or MSD) Card contains all the information you need for a deep data analysis. SD card sold separately.

Designed for the extreme

An on-board camera designed for motorsport must guarantee great resistance against the extreme working conditions typical of racing and against the most adverse weather.
That is why SmartyCam 3 Corsa is IP65 waterproof made in machinery molded aluminum, PA fiberglass reinforced and features sapphire frontal glass for a complete protection.

Automatic Start & Stop

You have other things to think about while you are racing and SmartyCam 3 is aware of that.
That is why it switches on/off automatically and starts/stops recording in the same way.

No “Wave Effect” with Global Shutter CMOS

Engine rumble causes vibrations, which are a big problem for video recording. You will never experience again that seasick “wave effect” you get watching videos recorded by a generic camera when the car rolls at 7,000 RPM.
SmartyCam 3 cameras have been designed for that environment and for those vibrations.
“Wave effect” is just a distant memory.

High quality with small size video files

Generic HD cameras are focused on the highest pixels number. The result is that their video files are far too large, taking too much memory; for this reason SmartyCam 3 videos have the same quality as other Full HD cameras (1920×1080 pixels @ 60 fps) but their files are smaller because the H.264 compression system parameters have been optimized to perfectly balance video quality and file size.

Technical Information

Each Kit Includes:

• AiM SmartyCam 3 Corsa
• External CAN Cable (2M OR 4m)
• USB Battery Charger with AC power adapter
• USB 2.0 Type A cable

Technical Characteristics:

• Video format: H.264 1920 x 1080 pixels @ 60 fps
• Display resolution:  128 x 128pixels
• Lens: Low distortion camera lens
• CMOS sensor: Global Shutter
• Field of view: 67° or 84°
• Internal battery Rechargeable lithium battery
• External power: 9-15 Volt
• Supported SD card: Up to 2 TB
• Usage temperatures: -10°C/+50°C
• Auto Power ON: Yes
• Auto Power OFF: Yes
• Auto Start/Stop Recording: Yes
• Body: Anodized Aluminum
• Dimensions: 102.2 x 63 x 46.5  mm
• Weight : 280 gr

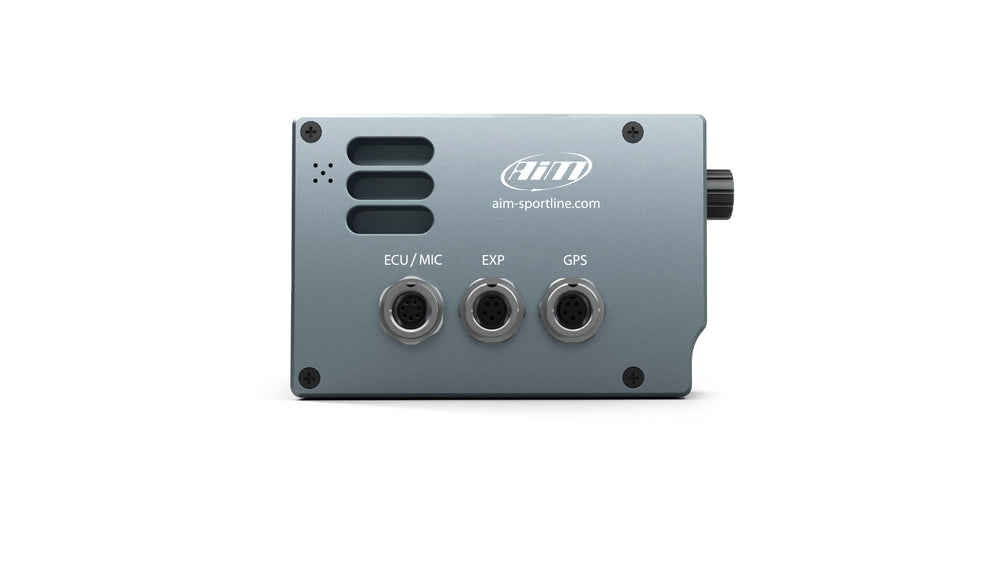

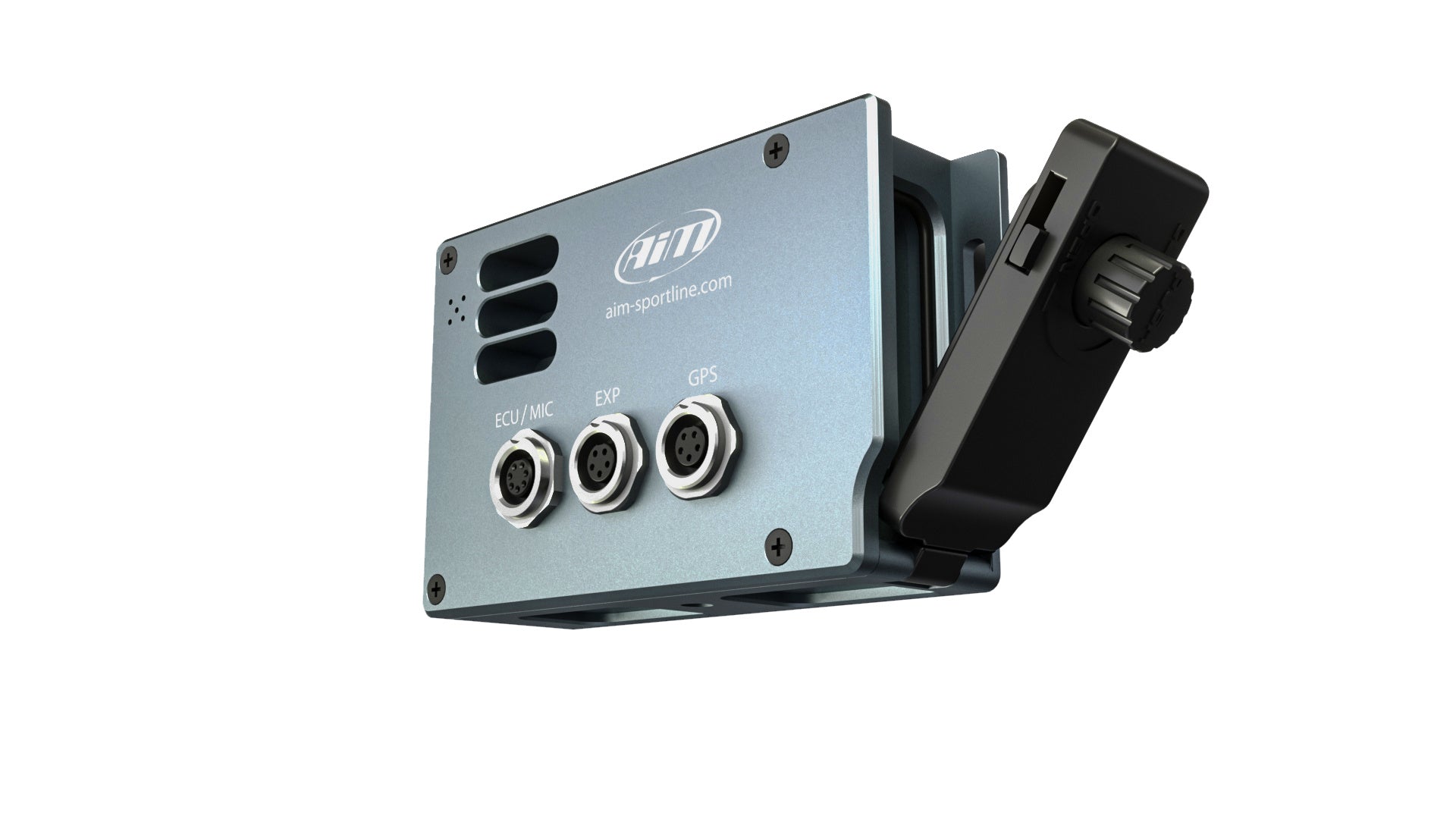

• Connectors: 3 Binder 712 female connectors + 1 USB-C
• Waterproof IP65
