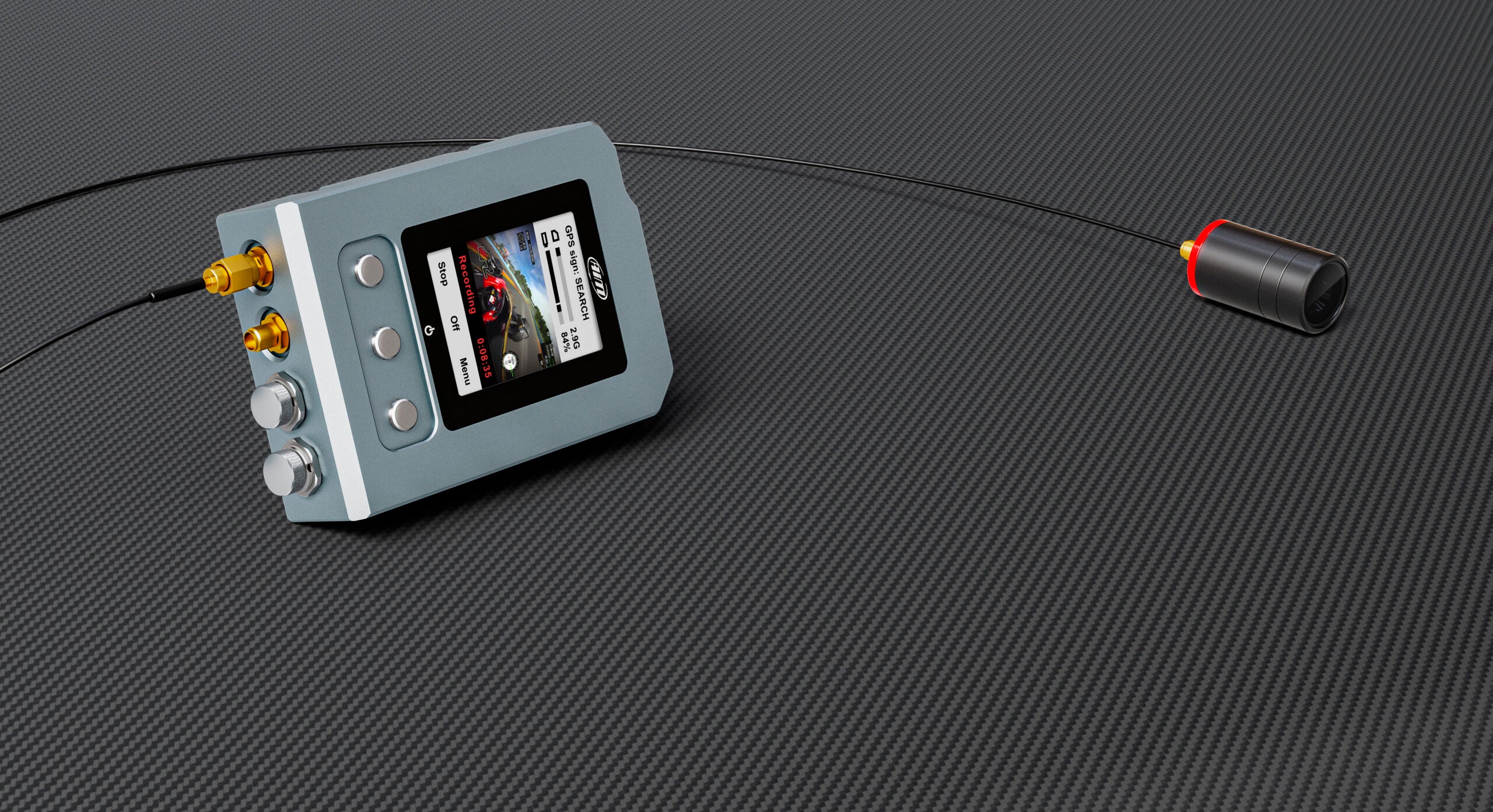

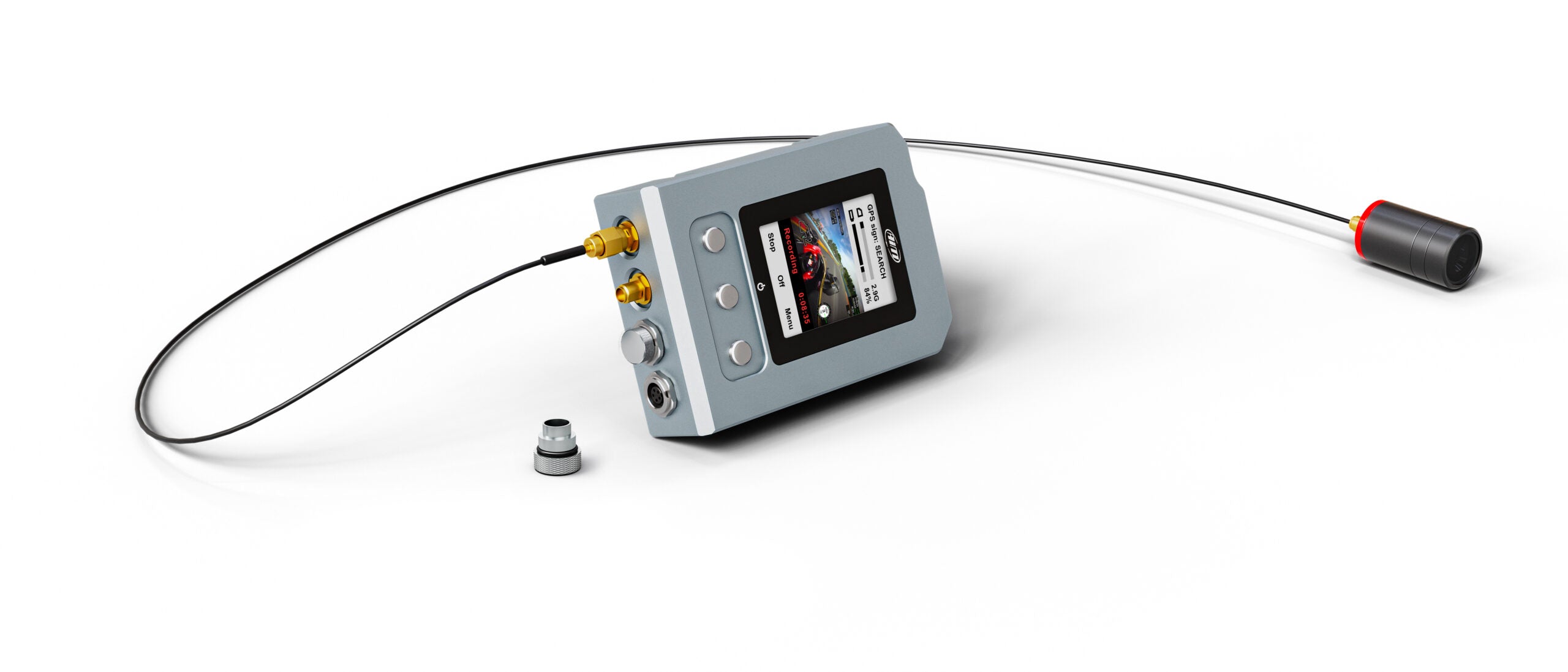

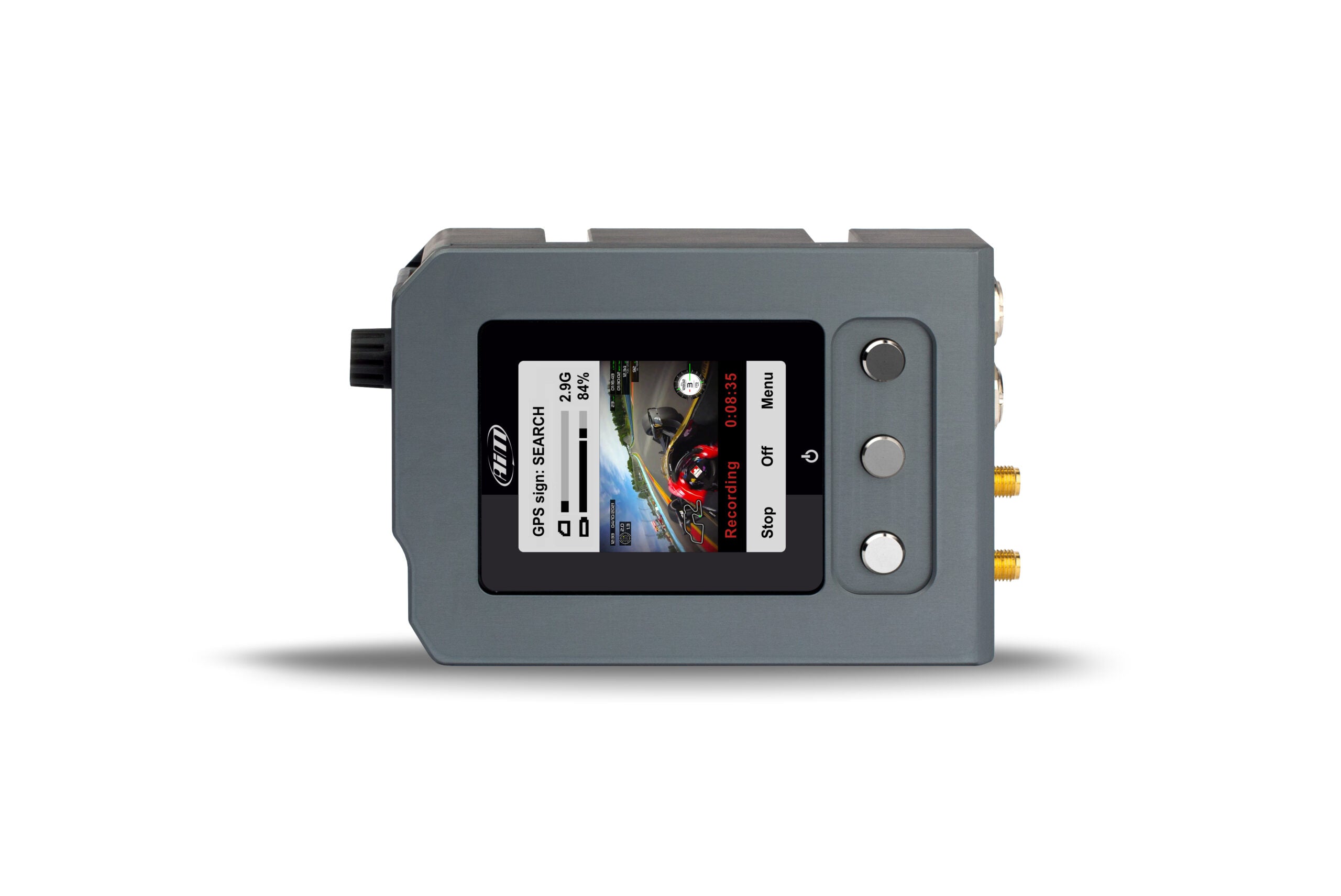

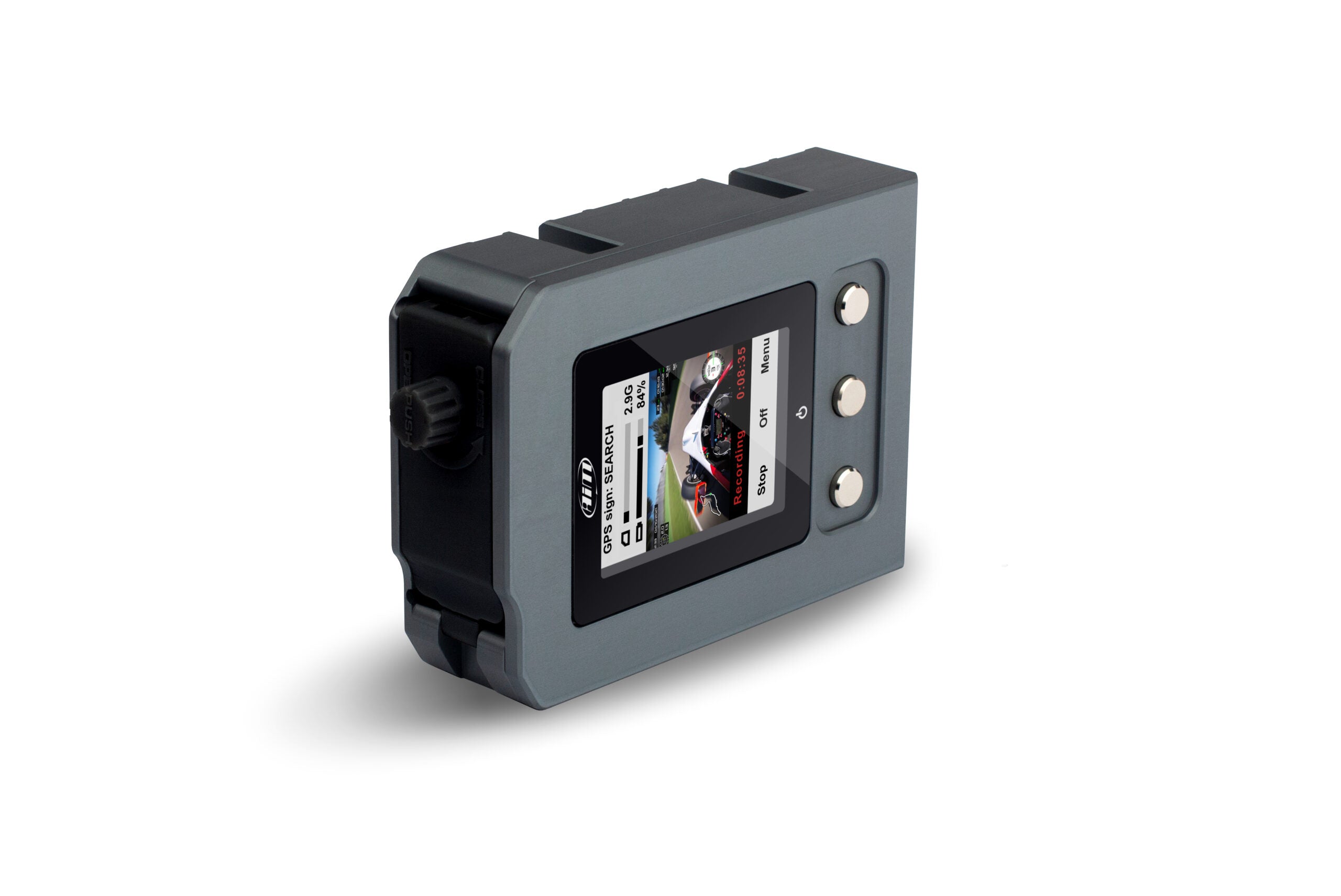

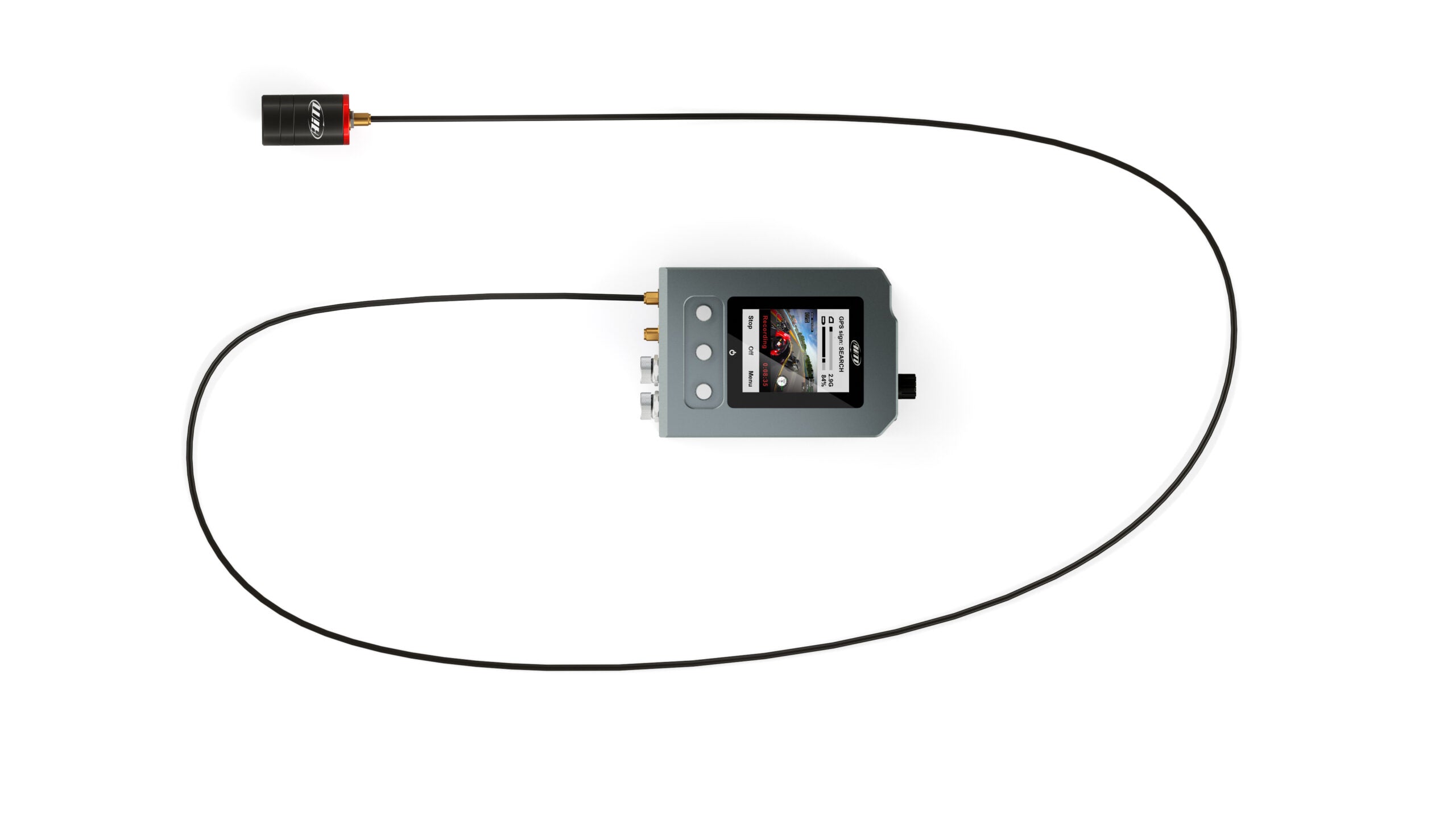

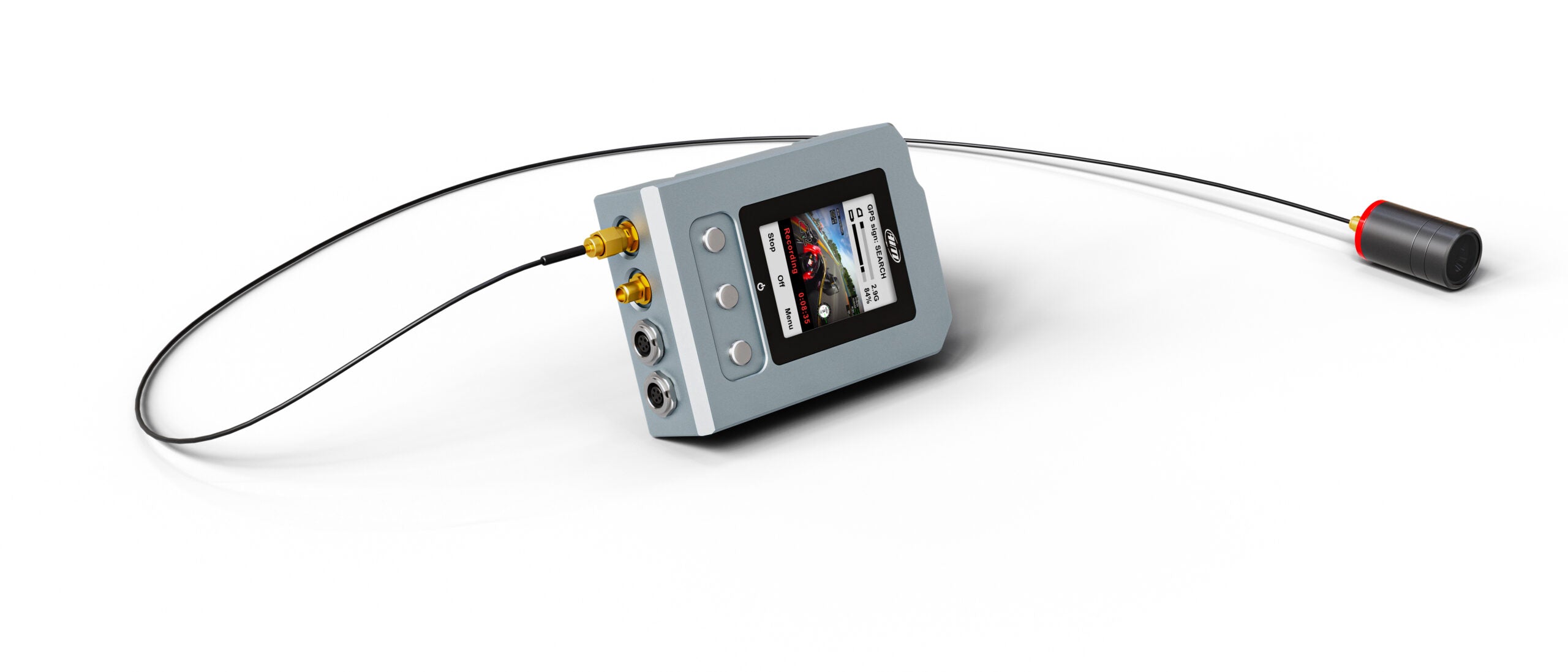

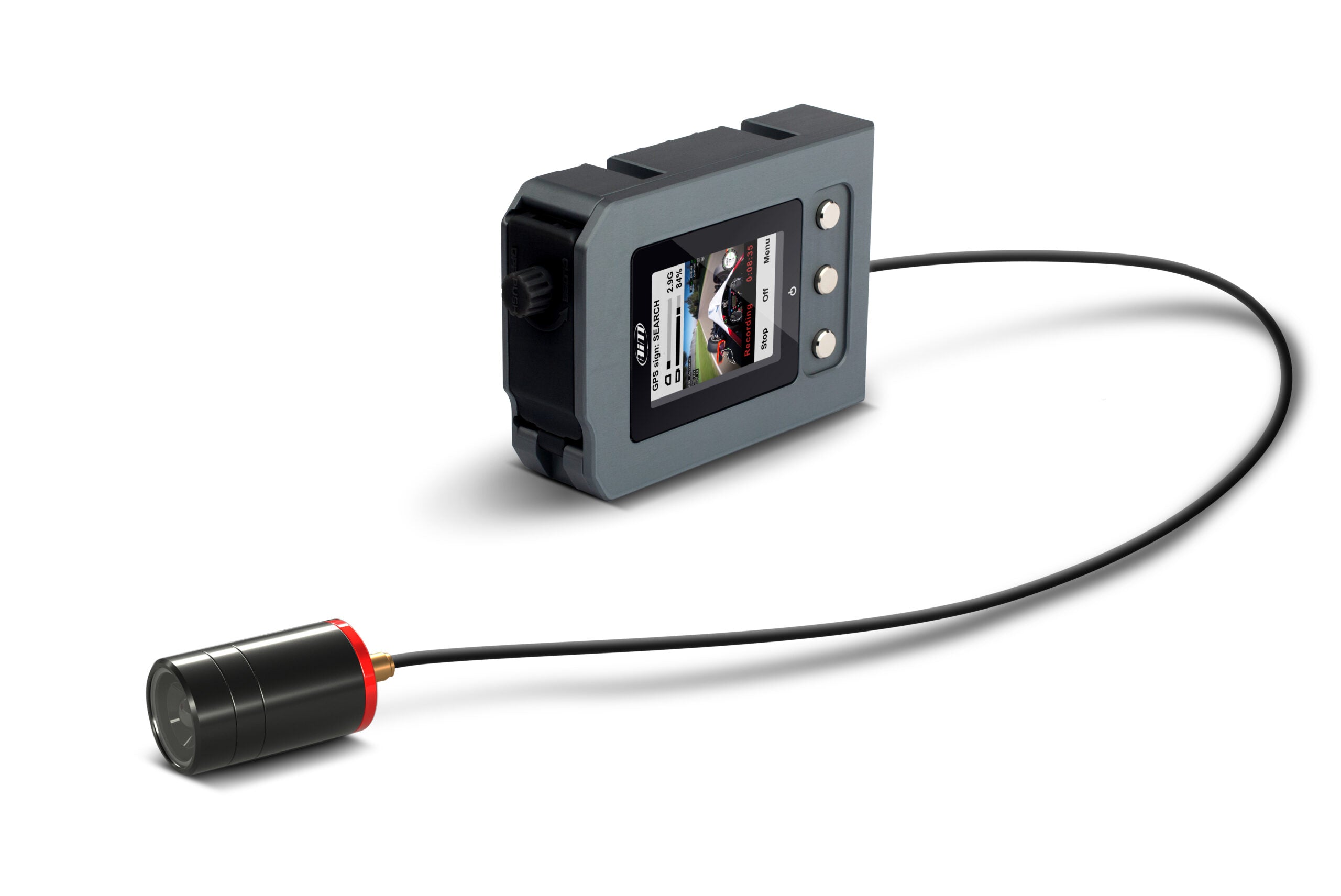

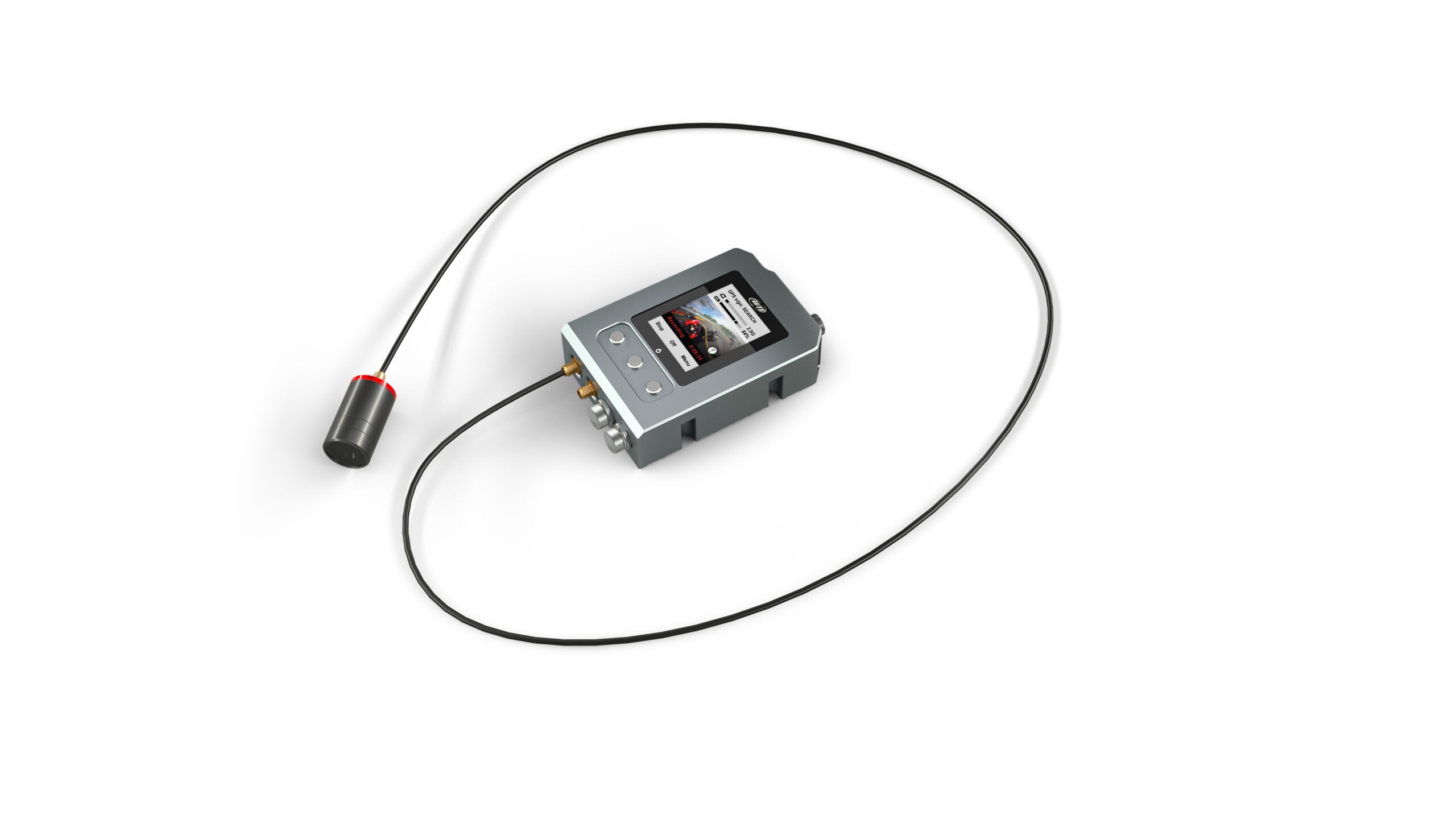

AiM SmartyCam 3 GP

The new AiM SmartyCam 3 GP in both 67° and 84° takes the AiM SmartyCam GP 2.2 to a whole new level. With 1920x1080 FHD Video recording at 60 frames per second, 2 TB SD Card capacity, Video Output, CAN Connection and more.

Highlights:

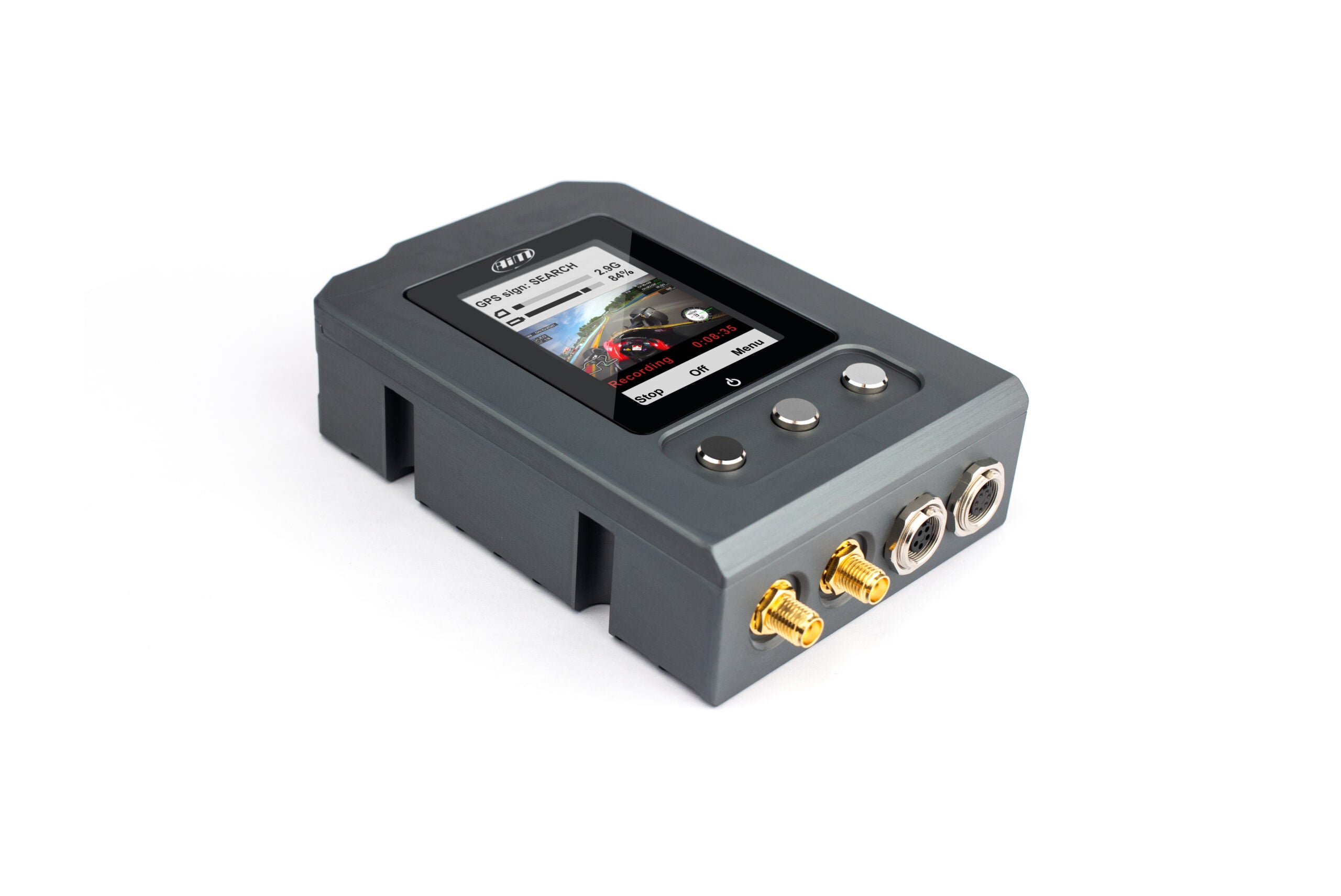

CAN Connection:

Connector labelled EXP is used to CAN connect the camera with AiM systems. In the CAN network SmartyCam 3 GP can be a master or a slave and can be connected to different AiM devices.

The second CAN is dedicated to ECU connection with more than 2,000 protocols supported, constantly updated. This connection can also be configured to communicate with other devices through Race Studio 3 software.

Video Output:

SmartyCam 3 GP features a video output with SDI interface. It allows to send the video/audio stream to a streamer at 30 or 60 fps to perform a video streaming.

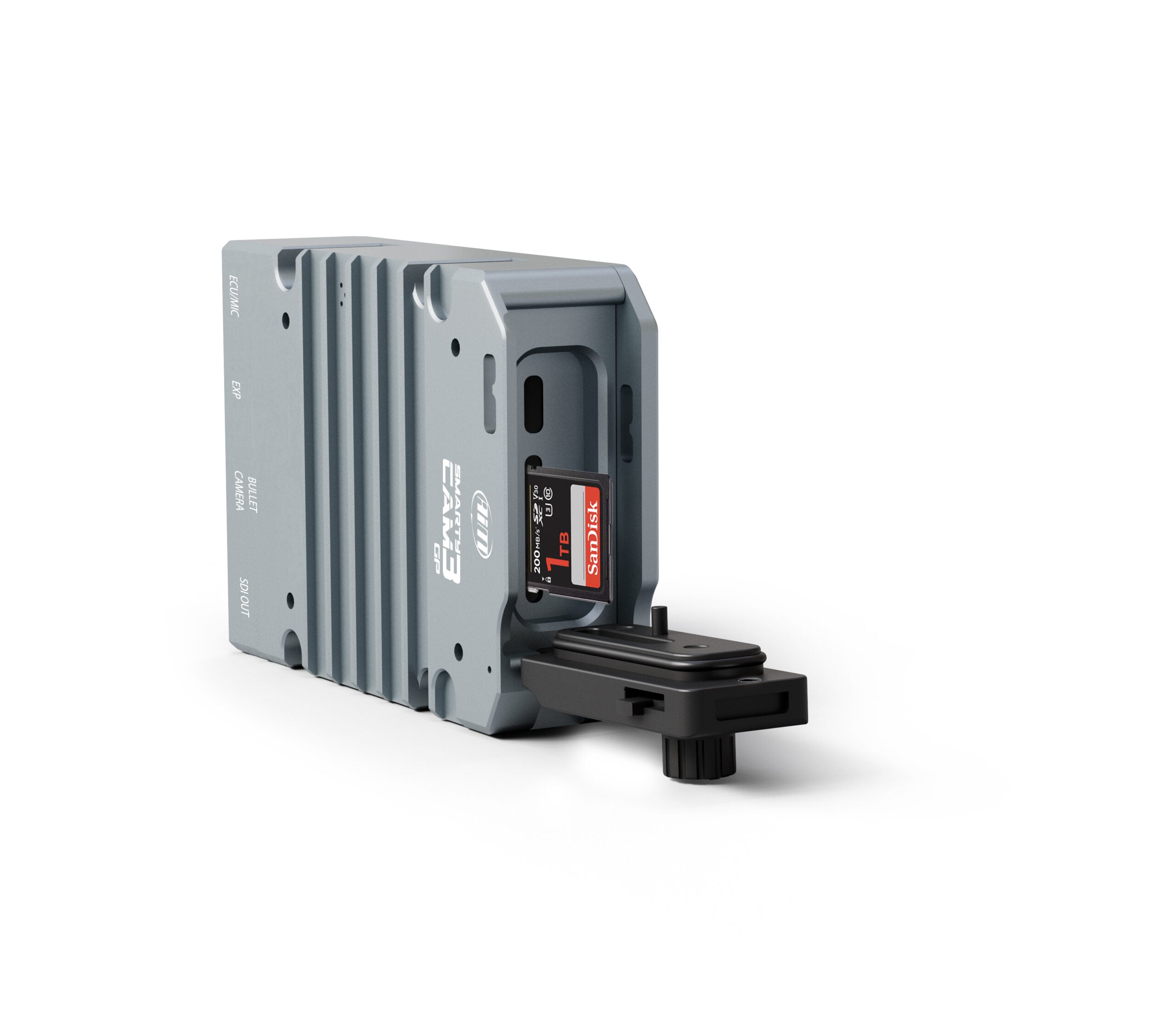

USB-C connection

USB-C port, placed in the side flap, makes any transfer from PC to SmartyCam 3 GP and vice-versa easy and fast. Using the proper cable, USB-C port makes it possible to send configuration, updating, tracks and settings to SmartyCam 3 GP and to download data and video after every session.

Full internal datalogger

All data received from the CAN bus and from the internal sensors are recorded in .mp4 files produced at the end of your test, your SD (or MSD) Card contains all the information you need for a deep data analysis. SD card sold separately.

Designed for the extreme

An on-board camera designed for motorsport must guarantee great resistance against the extreme working conditions typical of racing and against the most adverse weather.
That is why SmartyCam 3 GP is IP65 waterproof made in machinery molded aluminum, PA fiberglass reinforced and features sapphire frontal glass for a complete protection.

Automatic Start & Stop

You have other things to think about while you are racing and SmartyCam 3 is aware of that.
That is why it switches on/off automatically and starts/stops recording in the same way.

No "Wave Effect" with Global Shutter CMOS

Engine rumble causes vibrations, which are a big problem for video recording. You will never experience again that seasick “wave effect” you get watching videos recorded by a generic camera when the car rolls at 7,000 RPM.
SmartyCam 3 cameras have been designed for that environment and for those vibrations.
“Wave effect” is just a distant memory.

High quality with small size video files

Generic HD cameras are focused on the highest pixels number. The result is that their video files are far too large, taking too much memory; for this reason SmartyCam 3 videos have the same quality as other Full HD cameras (1920x1080 pixels @ 60 fps) but their files are smaller because the H.264 compression system parameters have been optimized to perfectly balance video quality and file size.

Technical Information

Each Kit Includes:

• AiM SmartyCam 3 GP module
• Bullet cam (select 67°,84° or 120° lens)
• Bullet Cam Cable (2m)
• External CAN Cable (2M OR 4m)
• USB Battery Charger with AC power adapter
• USB 2.0 Type A cable

Technical Characteristics:

• Video format: H.264 1920 x 1080 pixels @ 60 fps
• Display resolution: 2.4" 240 x 320 pixels
• Lens: Low distortion camera lens
• CMOS sensor: Global Shutter
• Field of view: 67°, 84° or 120°
• Internal battery Rechargeable lithium battery
• Video Out: 3G-SDI
• External power: 9-15 Volt
• Supported SD card: Up to 2 TB
• Usage temperatures: -10°C/+50°C
• Auto Power ON: Yes
• Auto Power OFF: Yes
• Auto Start/Stop Recording: Yes
• Body: Anodized Aluminum
• Dimensions:
  • • Main unit 120.8 x 80.2 x 30.9 mm
    • Bullet camera 24 diam x 46.0 mm (120° lens)
    • Bullet camera 24 diam x 41.0 mm (67°-84° lens)
• Weight :
  • • Main unit 320 g
    • Bullet 45 g
• Connectors: 2 Binder 712 female connectors + 2 SMA female connector (see pinout page) + 1 USB-C
• Bullet cable length: From 0.5 m to 4 m (7 lengths available)
• Waterproof IP65
